Create Azure Template

• To create a new Azure template, click on the “Create New Template” button in the Templates section





• When you click on “Create New Template” for Azure, a form will appear. Fill in the required fields, including the name, version, and description of your template. In the “Provider” field, choose “Azure.”









• In the “Template Type” field, select “Managed Cluster,”









• After completing the form, click on “Create Template” to save it.









In the template creation process, follow these three steps:

• Choose Your Repository: Select your repository from the list. A double tick will appear next to your selected repository.
• Click “Next Step.”

• Select the Package: Choose the package from the list. A double tick will appear next to your selected package.
• Click “Next Step.”

A form will appear with the following fields:

• Name: Enter a name for your template.
• Package Version: Select the version of the package.
• Provider: Azure.
• Secret: Input any necessary secrets for the template.
• Resource Group: Select the resource group for deployment.
• Node Group Name: Define a name for your node group.
• Instance type: Select the instance type for deployment.
• Count: Specify the desired number of nodes in your cluster.

• After filling out the necessary fields, click on Generate Manifest to complete the template creation.



• Click on Add Cluster

• A confirmation pop-up window of the addition of a manifest and package appears.

• Click on Finish

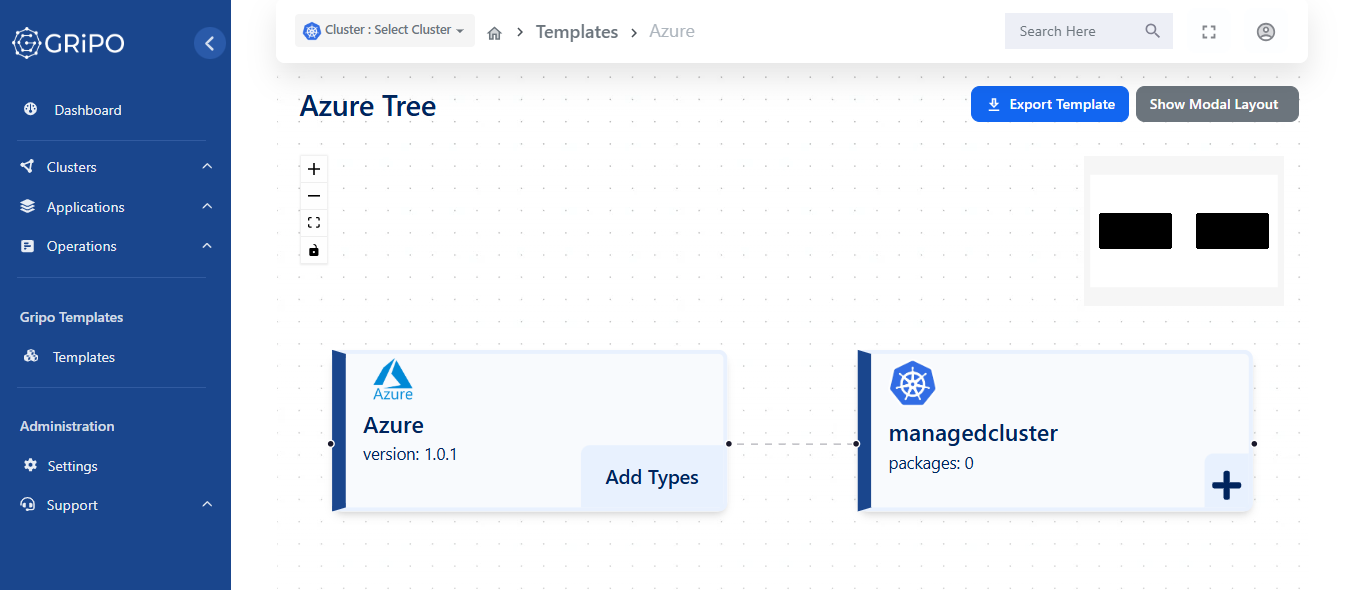

• Once the template is created, a window appears displaying a tree view for the Azure Managed-Cluster template.

Azure Cluster Provisioning:

This template facilitates efficient Azure cluster creation to suit your requirements
